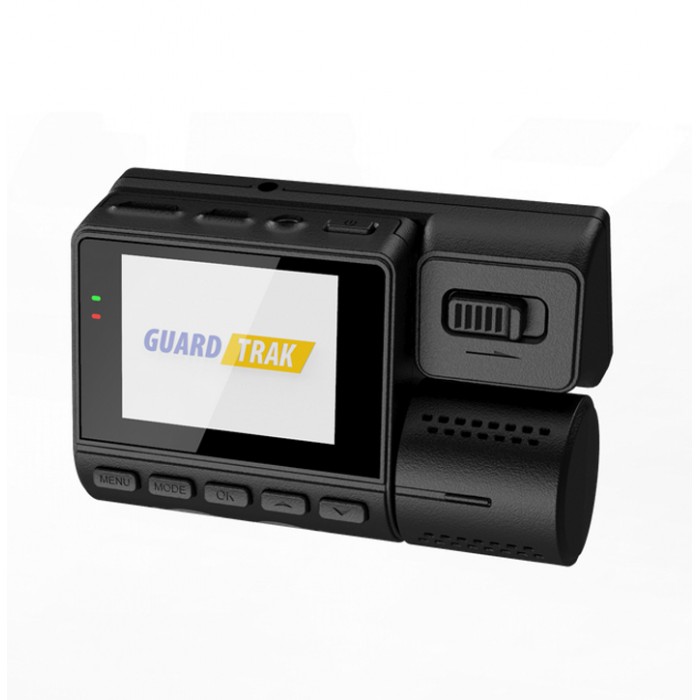

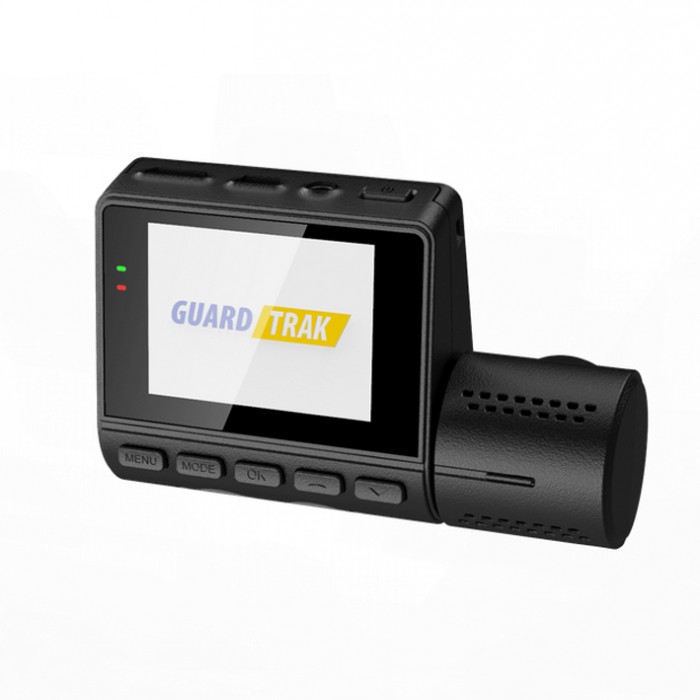

GuardTrak GT2SF

The GuardTrak GT2SF is based on our GT2S model and features advanced data logging capable of storing extensive vehicle tracking information and is ideally suited for insurers and fleet operators

If you’re an insurer or fleet operator and would like enquire about volume discount purchasing or would like to learn more about the data logging capabilities then please feel free to contact us

Our cameras feature the following components, selected due to the superior quality and outstanding performance offered, combined with class leading performance and our own fully featured firmware platform

• Full HD 1080p30fps @ 15Mbit/sec
• 2nd generation ARM9 Ambarella A2 processor (USA)
• Aptina AR-0330 CMOS sensor (USA)
• 7 element all glass lens (6 Glass + IR cut filter)
• Dual MicroSDHC memory (2 x 32GB, 64GB total)
• U-Blox G7020 GPS (Switzerland)
• ChipSip MCP memory (Taiwan)
• Domintech DMARD07 G-Sensor with power save function (Taiwan)
• ASAHI KASEI Delta-Sigma audio circuit (Japan)
• 12/24 volt direct input
• CELL=POWER low battery safety cut off module
• High Definition 2” LCD display (Taiwan)
• Super capacitor safety power supply (Korea)
• High Density ABS+PC composite chassis
• Designed for high temperature, high humidity environments

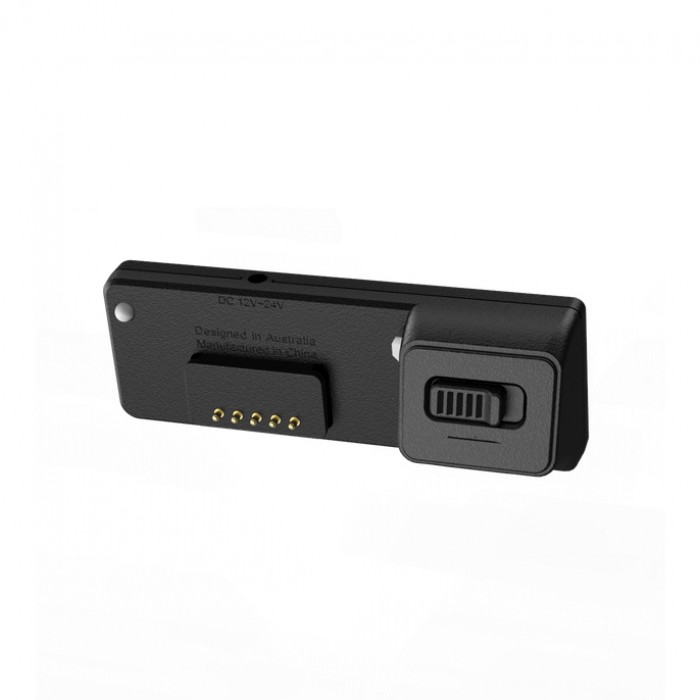

• Quick release mount bracket
• Screen mounted design to cut unwanted reflection
• All black design for discrete installation

 2nd generation ARM9 Ambarella A2 processor (USA)

• Automotive Smart AE
• 2nd generation image processing pipeline
• ulTRON operating system
• Custom firmware

Aptina AR-0330 CMOS sensor (USA)

• Res. 3.5MP
• Optical Format 1/3 inch
• Active Array 2304×1536
• Imaging Area 5.07mm H x 3.38mm V
• CRA (Chief Ray Angle) 0,21,25
• Sensitivity
• Pixel Size 2.2µm
• Responsivity 1.9V/lux=sec (550nm)
• Speed/Output
• Frame Rate 60 fps
• Chroma RGB
• Shutter type ERS
• Data Rate 196MPS
• Master Clock 6-64MHz
• Data Format RGB
• Environmental
• Supply Voltage 1.8v/2.8v
• Power Consumption 450mw
• Operating Temperature -30C to +70C

7 element all glass lens (6 Glass + IR cut filter)

• Metal housing
• Wavelength 400-700nm (colour)
• F/NO 2.0
• 130 degree diagonal field of View
• 96 degree horizontal field of view

Dual MicroSDHC memory (2 x 32GB, 64GB total)

• Advanced memory management
• Memory span
• GPS log book
• File copy

U-Blox G7020 GPS (Switzerland)

• Receiver type
• 56-channel u-blox 7 engine
• GPS & QZSS L1 C/A, GLONASS L1OF
• Galileo E1B/L1, BeiDou ready
• SBAS: WAAS, EGNOS, MSAS
• Navigation update rate up to 10 Hz
• Accuracy
• GPS 2.5 m CEP, SBAS 2.0 m CEP
• GLONASS
• Sensitivity
• GPS: Tracking -162 dBm, Coldstarts -148 dBm,
• Reaquisition -160 dBm
• GLONASS: Tracking -158 dBm, Coldstarts -140 dBm,
• Reaquisition -156 dBm
• Acquisition
• GPS: Coldstarts 29 s, Hot/aided starts 1 s
• GLONASS: Coldstarts 30 s, Hot/aided starts 3 s
• AssistNow Online, Offline, and Autonomous
• OMA SUPL & 3GPP compliant
• DC/DC converter Integrated
• Improved anti jamming
• Data logging: continuous output of position, velocity & time

ChipSip MCP memory, with 128MB ROM + 1GB DDR2 RAM (Taiwan)

• 128mb 3.3V NAND Flash system memory
• Data retention: 10 years
• 100,000 Program/Erase cycles with error correction
• Hardware Data Protection
• 1GB 1.8V DDR2 SDRAM
• Self-Refresh High Temperature

Domintech DMARD07 G-Sensor with power save function (Taiwan)

• Tri-axial digital accelerometer with ±2/4/8g dynamic range
• Embedded 8 bit ADC, I2C digital interface, and temperature sensor for internal compensation
• Low operation voltage of +2.4V ~ +3.6V with minimum interface voltage of +1.7V
• Special low-power operation mode with current consumption below 30uA
• Interrupt sources with high-G, freefall, and position change events
• Thresholds and timing for interrupt event configurations
• Built-in high- and low-pass filter with configurable cutoff frequency
• Auto-Awake function that auto-transit from low-power to normal mode upon interrupt events
• 5000g shock tolerance

ASAHI KASEI Delta-Sigma audio circuit (Japan)

• 16-Bit Delta-Sigma CODEC
• 1st MIC Amplifier 0dB to 32dB
• 2nd Amplifier with ALC +36dB ~ -54dB Step, Mute
• ADC performance (MIC-Amp= +20dB) S/(N+D): 84dB, DR, S/N: 85dB
• Wind Noise Reduction filtering
• Notch Filter
• Automatic Level Control
• Power management
• Output power: 400mW @ 8 Ohm

High Definition 2” LCD display (Taiwan)

• Transmissive Type
• Display Mode
• TFT LCD, Normal white mode
• Screen Size 2.0 inch
• Display Format 960(H)*(RGB)*240(V)
• Color Pixel Arragement RGB Vertical Stripe
• Display Mode Normal white TN
• Driving Method TFT active matrix
• Backlight Color White (LED*2)
